Architecture

DotBot Logistics straddles two worlds that speak different languages:

  • the mm world — the DotBot controller's REST API, where everything is millimetres;
  • the cell world — the simulation/ engine, where everything is integer grid cells.

A thin conversion boundary (the GridStateManager and the top-level driver functions in real_dotbot_pibt.py / sim_dotbot_pibt.py) translates between them: it reads bot positions in mm, snaps them to cells for PIBT, then turns the planned cells back into mm waypoints.

Overview

The high-level picture — three zones and the data that crosses between them (mm in red, cells in green):

Architecture overview

Of the controller's ~10 REST endpoints, the PIBT drivers use only three: two reads (/controller/dotbots, /controller/map_size) and one command (PUT …/waypoints). The detail diagrams below zoom into each zone.

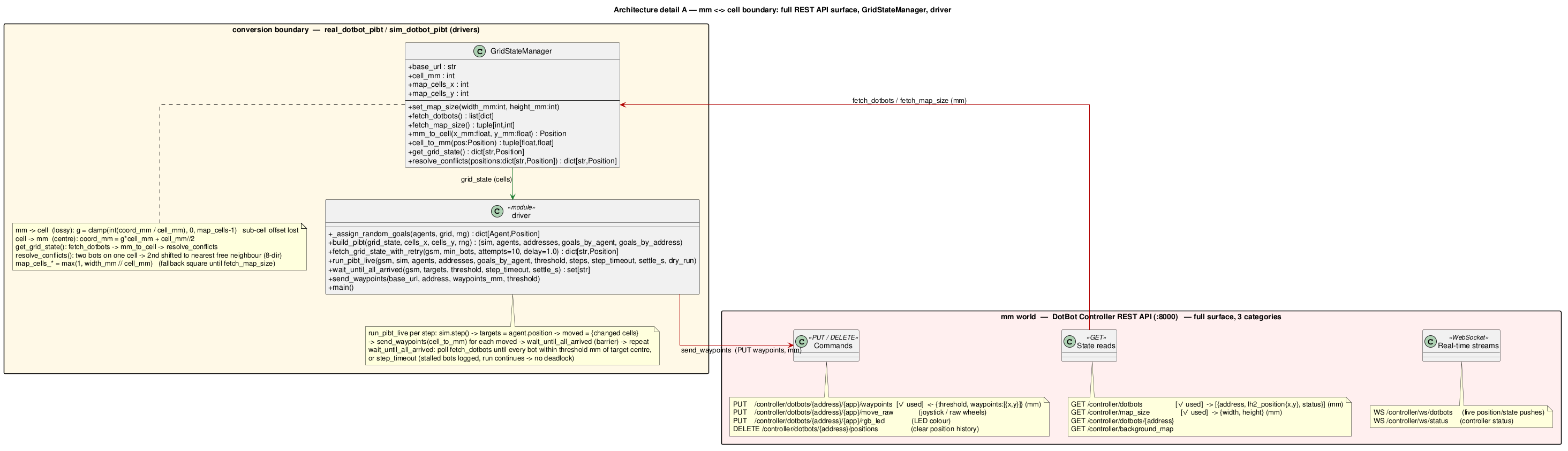

Detail A — the mm ↔ cell boundary

The full REST API surface grouped into three categories — state reads (GET), commands (PUT/DELETE), and real-time streams (WebSocket) — with the endpoints the project actually uses marked [✓ used]. Alongside it, GridStateManager (the mm↔cell converter) and the driver module's functions.

mm ↔ cell boundary

Key points:

  • mm → cell is lossy: g = clamp(int(coord_mm / cell_mm), 0, map_cells-1) — the sub-cell offset is discarded. Two bots that snap to the same cell are separated by resolve_conflicts() (the second moves to the nearest free neighbour).
  • cell → mm targets the cell centre: coord_mm = g*cell_mm + cell_mm//2.
  • run_pibt_live advances one PIBT step, sends one waypoint per moved bot, then blocks in wait_until_all_arrived (the synchronisation barrier) until every bot is within threshold mm of its target — or the per-step timeout fires, in which case stalled bots are logged and the run continues (no deadlock).

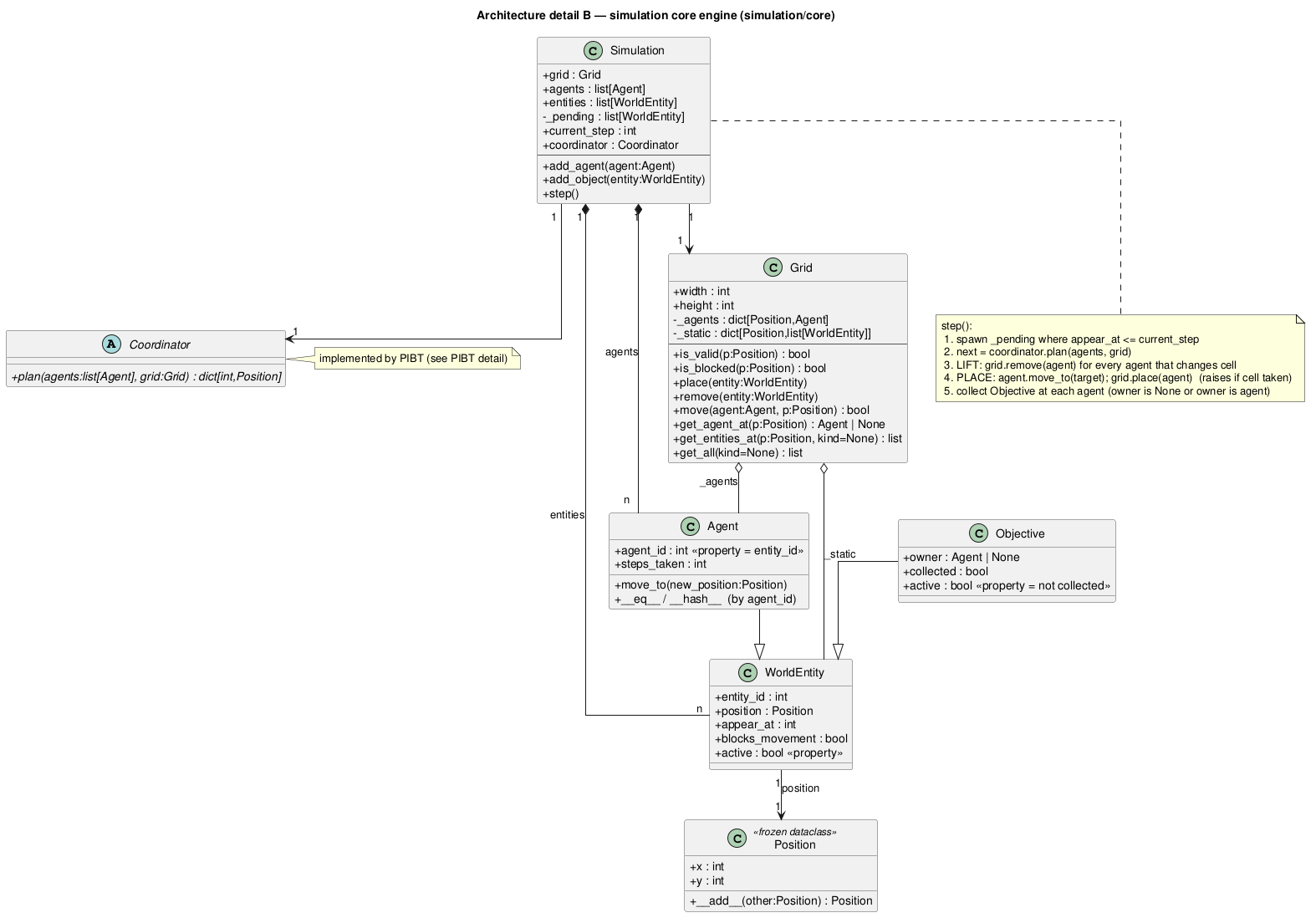

Detail B — the simulation core engine

The simulation/core package: the entity hierarchy (WorldEntity → Agent / Objective), the Grid, the pluggable Coordinator interface, and the Simulation that drives a step.

Simulation core

The heart is Simulation.step(), a lift-then-place pipeline: spawn any due entities, ask the coordinator for everyone's next cell, remove all moving agents from the grid first (so they don't block each other), place them at their targets, then collect objectives.

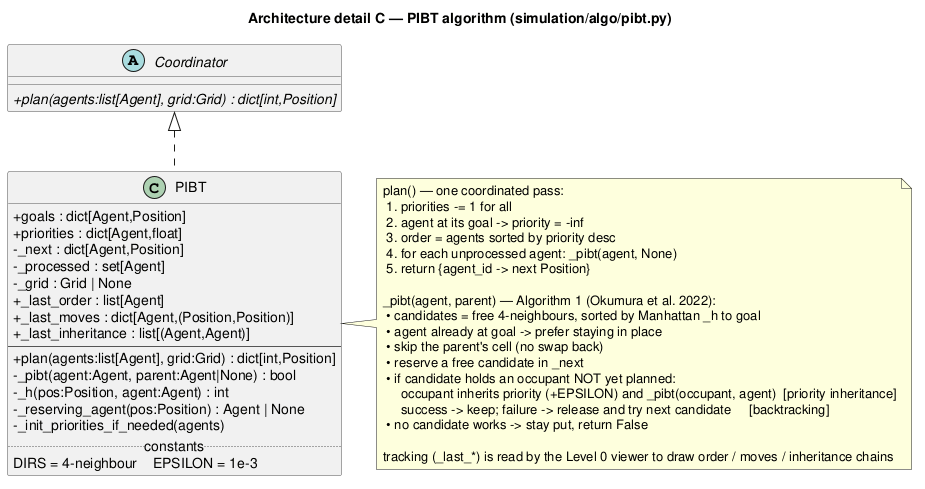

Detail C — the PIBT algorithm

The PIBT coordinator (simulation/algo/pibt.py), an independent reimplementation of Okumura et al. (2022)'s Algorithm 1.

PIBT algorithm

Each plan() ages priorities, pins agents already at their goal to -inf, orders agents by priority, and runs the recursive _pibt(): an agent reserves its best free neighbour by Manhattan distance; if that cell holds a not-yet-planned occupant, the occupant inherits priority and is pushed recursively, backtracking if no move works. The _last_* tracking attributes are what the Level 0 viewer reads to draw the priority order, moves, and inheritance chains.

Editing the diagrams

Each diagram is a PlantUML source next to its PNG under docs/assets/ (arch_overview.puml, arch_boundary.puml, arch_core.puml, arch_pibt.puml). Re-render with plantuml -tpng docs/assets/arch_*.puml.
